S&S DIESEL FUEL LEAK PREVENTION KIT PLUS 6.7F11-LPK-PLUS
Regular price
$350.00
Couldn't load pickup availability
DESCRIPTION
The S&S Diesel Fuel Leak Prevention Kit Plus 6.7F11-LPK-PLUS is a complete fuel filtration upgrade and refresh kit for your Ford F250/F350/F450/F550 6.7L Powerstroke. The modern diesel fuel system specialists at S&S Diesel Motorsport® have created another solution to a fuel system problem tormenting Super Duty truck owners. Plastic is a great material for fuel filtration due its corrosion resistance, yet the material’s strength can degrade after many heat cycles. This degradation has created a recipe for disaster for Ford trucks equipped with the 6.7L Powerstroke diesel. The plastic engine-mounted fuel filter can crack and spray fuel onto a hot inboard exhaust system and start the taboo four-letter word that automotive engineers renamed a “thermal event.” As if cracking fuel filters weren’t enough to worry about, the fitting that returns fuel from the injectors is also made of plastic, creating two potential leak points.
Donaldson P584171 Engine-Mounted Spin-On Fuel Filter:
OEM-Spec Filtration (4-Micron Absolute At 99% Efficiency)
Exceeds OEM Dirt Holding Capacity (S&S 23 Grams Vs OEM 12 Grams)
Donaldson P584946 Chassis-Mounted Cartridge Fuel Filter:
10-Micron Nominal
OEM-Spec Dirt Holding Capacity Dirt-Holding Capacity (>40g)

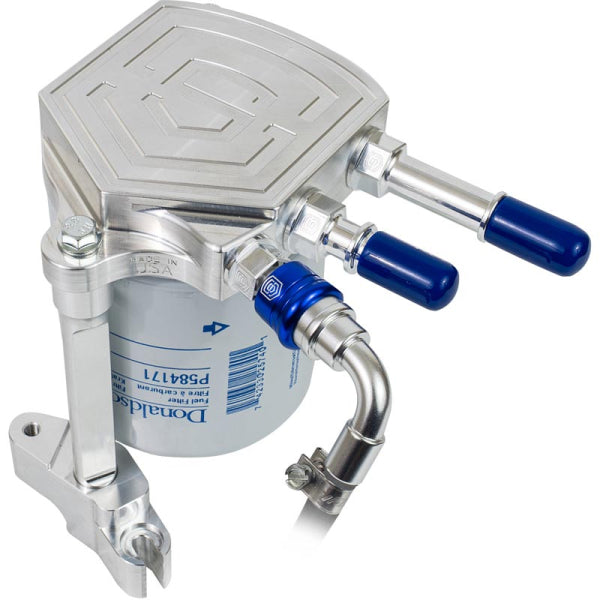

The Ford 6.7L Fuel Leak Prevention Kit (LPK) is the only all-in-one solution to both problems that meets and exceeds the OEM filtration specifications. Ford’s filtration is great; the problem lies with the plastics durability. The billet aluminum LPK solves that problem. Yet the fuel system engineers at S&S are not going to create one problem by solving another. The decision was made to forgo the OEM fuel filter cup altogether and use a two-post mount that allows for a much larger filter that retains the factory filtration specs of 4-micron absolute at 99% efficiency and nearly double the dirt holding capacity (S&S 23 grams vs. OEM 12 grams). Fixing one leak point while leaving another does not make sense, so the aluminum Fuel Leak Prevention Fitting for the injector return comes standard with all kits. In summary, the S&S LPK prevents fuel leaks without sacrificing filtration. The S&S Diesel Fuel Leak Prevention Kit is the perfect complement to the S&S Disaster Prevention Kit, the DCR Pump Conversion, as well as a completely stock fuel system.

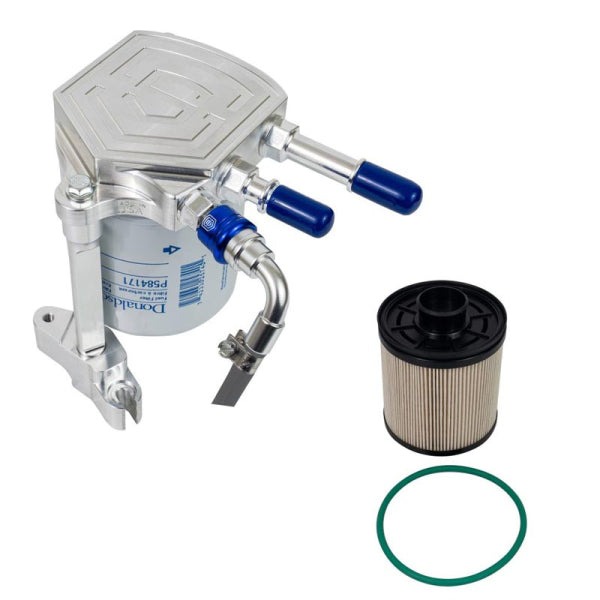

In a two-filter system, upgrading one filter without changing the other is not ideal. This PLUS kit includes everything found in the standard kit and adds a Donaldson chassis-mounted fuel filter to make it a complete fuel filtration upgrade and refresh your fuel system in one kit.
Donaldson P584171 Engine-Mounted Spin-On Fuel Filter:
OEM-Spec Filtration (4-Micron Absolute At 99% Efficiency)
Exceeds OEM Dirt Holding Capacity (S&S 23 Grams Vs OEM 12 Grams)
Donaldson P584946 Chassis-Mounted Cartridge Fuel Filter:
10-Micron Nominal
OEM-Spec Dirt Holding Capacity Dirt-Holding Capacity (>40g)

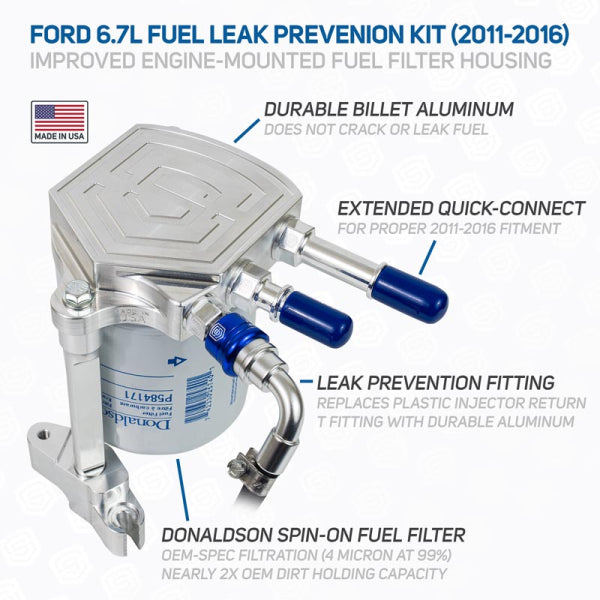

FEATURES:

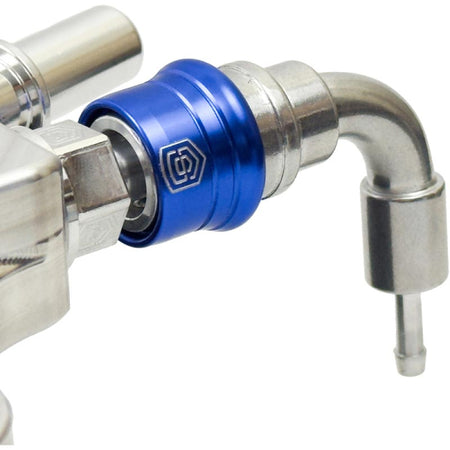

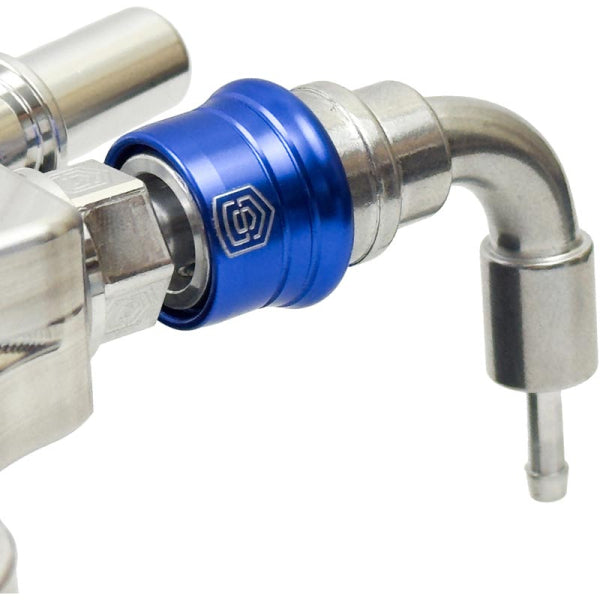

- Easy-Release Quick Connect
- Durable Aluminum Hose Barb
- Aluminum Fuel Injector Return Fitting

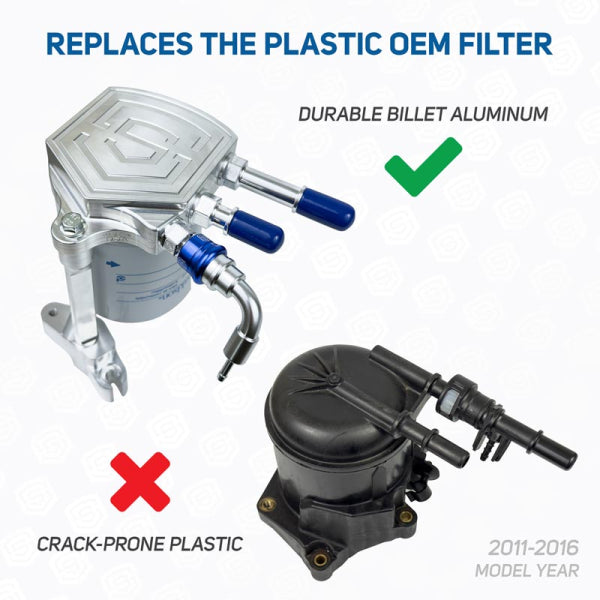

- Replaces The Crack-Prone Plastic OEM Fuel Filter

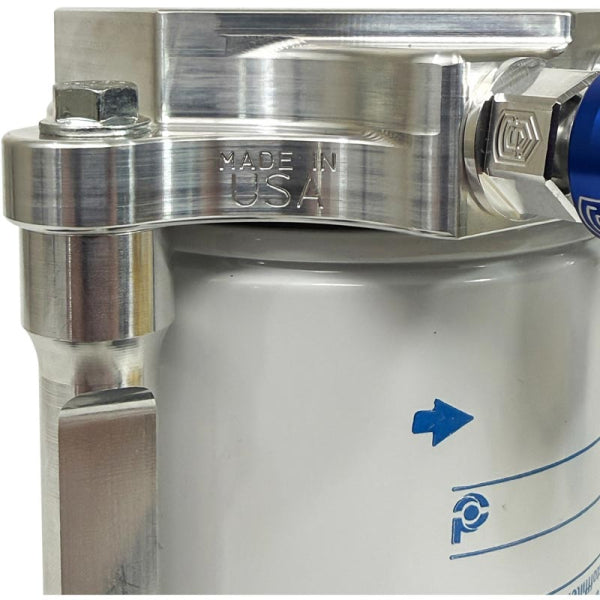

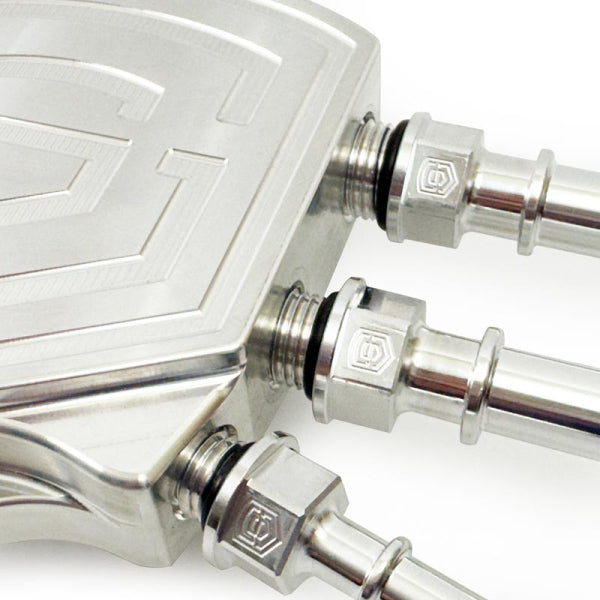

- Billet Aluminum Engine-Mounted Fuel Filter Housing
- Bolt Holes Machined To Accept 8mm Allen For Easy Filter Removal

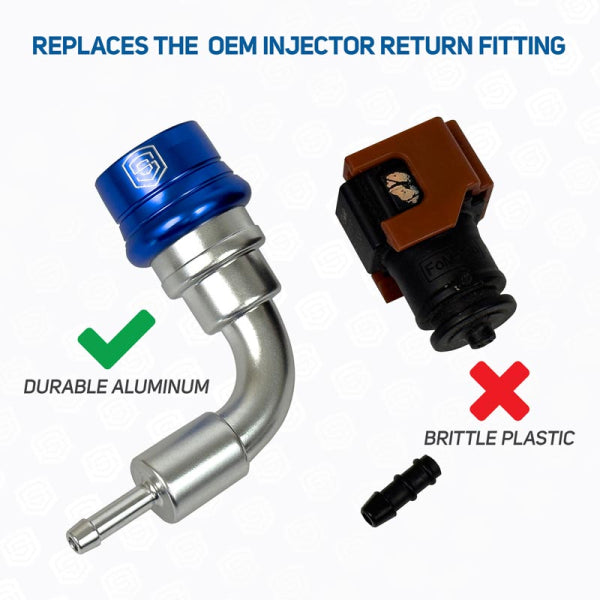

- Aluminum Fuel Leak Prevention Fitting To Replace Brittle Plastic OEM Injector Return Fitting
- Includes Donaldson Engine-Mounted Spin-On Fuel Filter & Chassis-Mounted Cartridge Filter
Manufacturer Warranty*:
2 Year / Unlimited Mileage
2 Year / Unlimited Mileage
Shipping Restrictions Apply
This product can not be shipped to these states/provinces: CA
This product can not be shipped to these states/provinces: CA
