AIRDOG II-5G A7SABF593 DF-165-5G AIR/FUEL SEPARATION SYSTEM

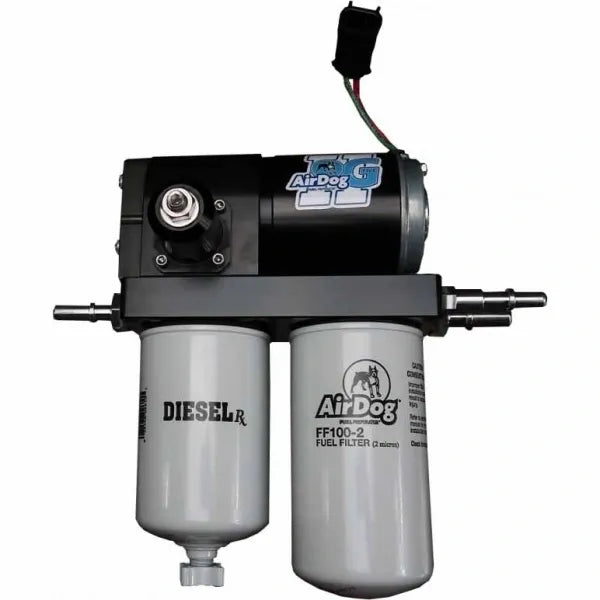

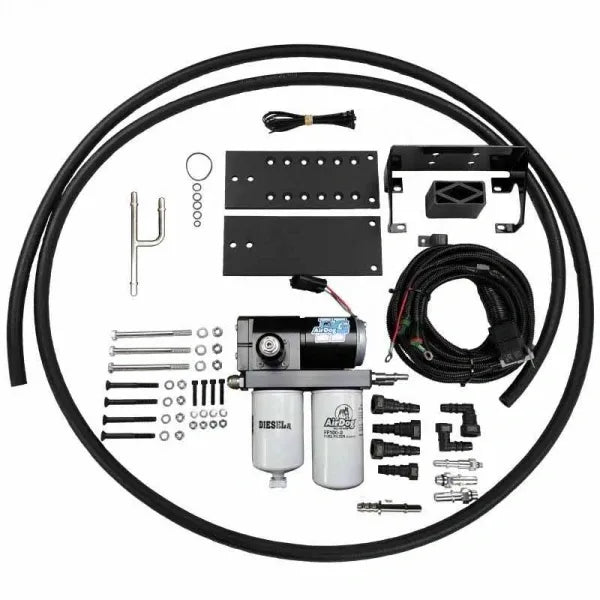

The Pureflow AirDog II-5G A7SABF593 DF-165-5G Air/Fuel Separation System from XDP is the newest generation in fuel delivery systems for your 2003-2007 Ford 6.0L Powerstroke. The 5G is engineered to be the longest lasting, most efficient, and quietest lift pump system XDP has to offer. The AirDog II-5G features a 4-bearing motor with an intermediate shaft that reduces pump noise and improves reliability. The demand flow design allows the pump to only send the necessary amount of fuel to the engine. A dual feed design supplies fuel to both sides of the gerotor pump to decrease air bubbles and cavitation. The AirDog II-5G utilizes a diaphragm style fuel pressure regulator that allows the pump to be boost referenced and adjusted from 7-70 PSI The 5G system features larger 3/4-16 O-ring boss inlet and outlet ports. A 7/16-20 (-4) low-flow return is used to prevent aeration in the fuel being sent to back to the tank. This diesel lift pump mounts to the frame rail using the supplied sandwich plate mounting system and replaces the factory frame rail fuel pump. The suction side hooks up to the factory suction line on the frame rail. The pressure side connects to the factory feed line to the injection pump. The AirDog Air/Vapor return is sent back to the tank through a return “Y” that ties the AirDog return to the factory engine return.

• 165 GPH Pump
• Demand Flow Design
• Larger Ports Over Previous Pumps
• Diaphragm Fuel Pressure Regulator
• 4 Bearing Motor with Intermediate Shaft
• Reduced Aeration From Low Flow Return

WARRANTY INFO: Limited Lifetime
