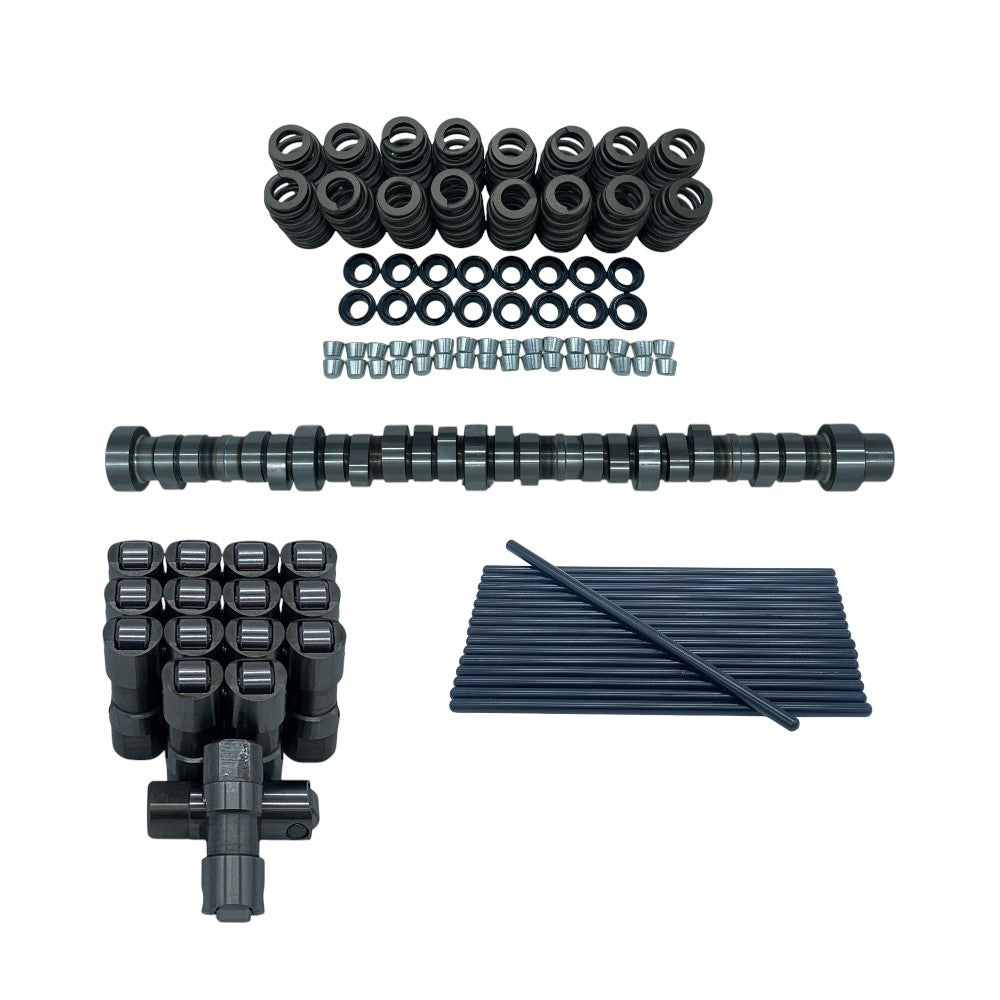

7.3L 94-03 Powerstroke Stage 2 Beehive Spring Valvetrain Kit

7.3L 94–03 Powerstroke Stage 2 Beehive Spring Valvetrain Kit

Take your 1994–2003 Ford 7.3L Powerstroke to the next level with the Stage 2 Beehive Spring Valvetrain Kit—a complete performance upgrade for serious builders and enthusiasts. This kit is designed for those seeking more horsepower, higher RPM capability, and uncompromising reliability.

What’s Included:

• Stage 2 Camshaft

  • Engineered for increased efficiency and power
  • Cam Specs:
    • Duration: 190° Intake / 200° Exhaust
    • Valve Lift: .430″ Intake / .438″ Exhaust
    • 107° Lobe Center Line
  • Delivers optimal valve timing and improved performance

• Beehive Valve Spring Kit

  • Specialized beehive design for higher RPM stability and better valve control
  • Reduces valvetrain weight for improved engine response

• Billet Push Rods

  • Heavy-duty 3/8″ .080 wall construction for maximum strength
  • Enhances reliability under high-stress, high-RPM conditions

• 16 Heavy-Duty Lifters

  • Built for demanding, high-performance environments
  • Ensures consistent and reliable operation

Important Install Notes:

• OBS Trucks (1994–1997):
  • Requires an electric fuel pump—the camshaft does not have a mechanical fuel pump eccentric lobe.
• Piston-to-Valve Clearance:
  • Fly-cut pistons are not required, but always check clearance for safe, optimal performance.

Key Features :

• Complete Stage 2 valvetrain upgrade for 7.3L Powerstroke (1994–2003)
• Increases horsepower, RPM range, and overall engine efficiency
• Durable billet push rods and heavy-duty lifters included
• Advanced beehive valve springs for better control at higher RPMs
• Camshaft specs: 190°/200° duration, .430″/.438″ lift, 107° LCL
• Perfect for engine upgrades, performance builds, and reliability improvements

Maximize your 7.3L Powerstroke’s potential with the Stage 2 Beehive Spring Valvetrain Kit—built for power, reliability, and higher performance.

Professional installation and piston-to-valve clearance checks are recommended for best results.
