6.7 Ford Powerstroke Diesel Engine Overhaul/Rebuild kit 2011-2016

Heavy Duty Engine Overhaul Kit – 2011–2016 Ford 6.7 Powerstroke (F250–F750)

The Heavy Duty Engine Overhaul Kit for the 2011–2016 Ford 6.7 Powerstroke is built for superior durability, reliability, and long-term performance. This complete rebuild kit includes high-quality, name-brand components and is ideal for stock rebuilds or heavy-duty applications.

With multiple size options available for pistons, piston rings, rod bearings, and main bearings, this kit is designed to help ensure the proper fit and clearances needed for a successful engine overhaul.

This kit is perfect for anyone rebuilding a 6.7 Powerstroke engine and looking for trusted parts to restore the engine back to like-new condition.

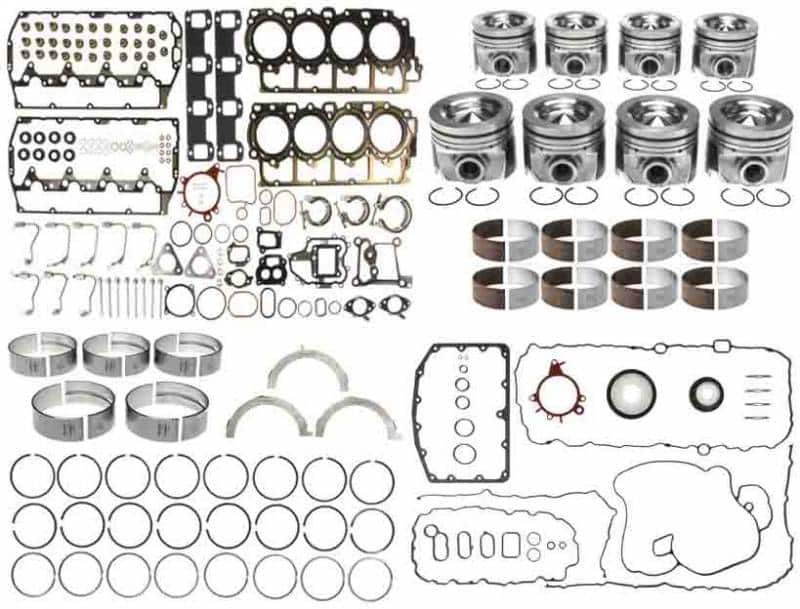

Kit Includes

Pistons (Mahle or UEM – Depending on Availability)

• Mahle Part #: 224-3852

• Ford OEM #: BC3Z-6108-A

• Bore: 99.0mm

• Full Length: 79.3mm

• Pin O.D.: 34.0mm (Late 2016 uses 35.0mm)

• Compression Height: 54.5mm

• Material: Hypereutectic

• Combustion Chamber Depth: 15.7mm

• Coating: Hard anodized / graphite coated piston skirts

Piston Ring Set

• Mahle Part #: 42168

• Ford OEM #: BC3Z-6148-A

• Bore: 3.898 in / 99.0mm

• Thickness: 0.113 in

• Width: 0.098 in

• Ring Facing: UCR Plasma Moly / OCR Gas Nitride

Connecting Rod Bearing Pairs (Clevite / King / ACL – Depending on Availability)

• Part #: CB-1953AP

• Material: AL-5 / TM-77

• Compatible Part Numbers:
  CB1953AL, CB1953H, CTNC004R, SEP6004, SLVC344R

Thrust Washer Set

• Part #: TW-711S

• Brand: Clevite / King / ACL (Depending on Availability)

Main Bearing Set (Clevite / King / ACL – Depending on Availability)

• Part #: MS-2350A (Supersedes MS-2334A)

• Ford OEM #: FC3Z6D309A, DC3Z6D309A, BC3Z6D309A

• Compatible Part Numbers: CTNC136R-A, MB4015AU, MB4040AZL

• Housing Bore: 4.421 in / 112.3mm

• Shaft Diameter: 3.555 in / 90.3mm

Cylinder Head Gasket Set (Mahle HS54886 or Fel-Pro – Depending on Availability)

• Ford OEM #: BC3Z-6079-B

• Multi-layer steel head gaskets

• Valve stem seals included

• Intake manifold gasket included

• Valve cover gaskets included

• Head fasteners not included

Lower Engine Gasket Set (Mahle CS54886 or Fel-Pro – Depending on Availability)

Includes essential lower engine sealing components such as:

• Rear main seal (PTFE)

• Oil pan gasket

• Timing cover gaskets/seals

• Oil cooler seal

• Oil filter adapter gasket

• Oil pan drain plug gasket

• Water pump gasket included

IMPORTANT – PLEASE READ (Piston Agreement)

This kit is designed for precision engine rebuilding. Cylinder bores must be measured by a machine shop before ordering to ensure correct piston sizing.

• Any piston size changes after ordering will require restocking and additional shipping fees

• Ceramic-coated pistons or machined pistons are non-exchangeable

• Please confirm your measurements before purchase to avoid delays or added costs
