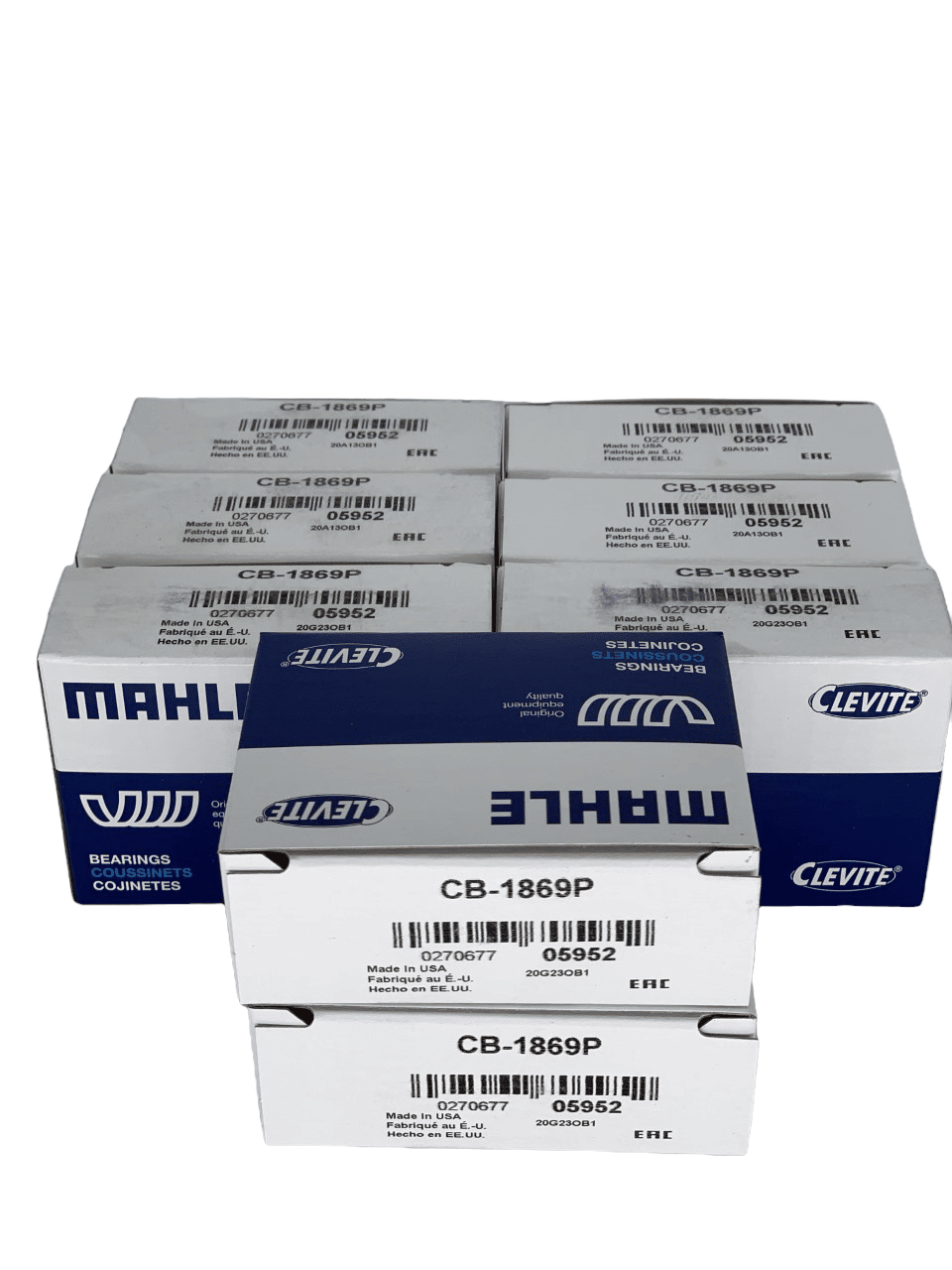

6.4L Powerstroke Diesel Rod Bearing Set CB-1869P

6.4L Powerstroke Diesel Rod Bearing Set CB-1869P

2008-2010 Ford 6.4L Powerstroke Clevite CB-1869P P-Series Rod Bearing. The Clevite P-Series are the oldest and most tried and true series of Clevite high performance bearings. The rod bearings in this series typically have the greatest amount of eccentricity. P-Series Rod Bearings have high crush for maximum retention and a reduced overlay thickness to prevent overlay fatigue sometimes referred to as hen tracking.

P-Series Rod Bearings use hardened steel back for added strength, and resistance to fretting. They should be used where extremely high RPMS cause severe rod bore close in. This is typically indicated by nearly full parting line to parting line shaft contact with bearings having less eccentricity.

FEATURES:

• Size: Standard
• Clevite P-Series
• Material: TM-77
• Sold AS A SET OF (8)

SPECIFICATIONS

• Material: TM-77
• Housing Bore (Min – Max): 2.992 in – 2.993 in
• Max. Length: 0.831 in
• Vert. Oil Clearance (Min – Max): 0.001 in – 0.004 in
• Shaft Diameter STD (Min – Max): 2.834 in – 2.835 in
• Wall Thickness (Max): 0.078 in
• Size: Standard
