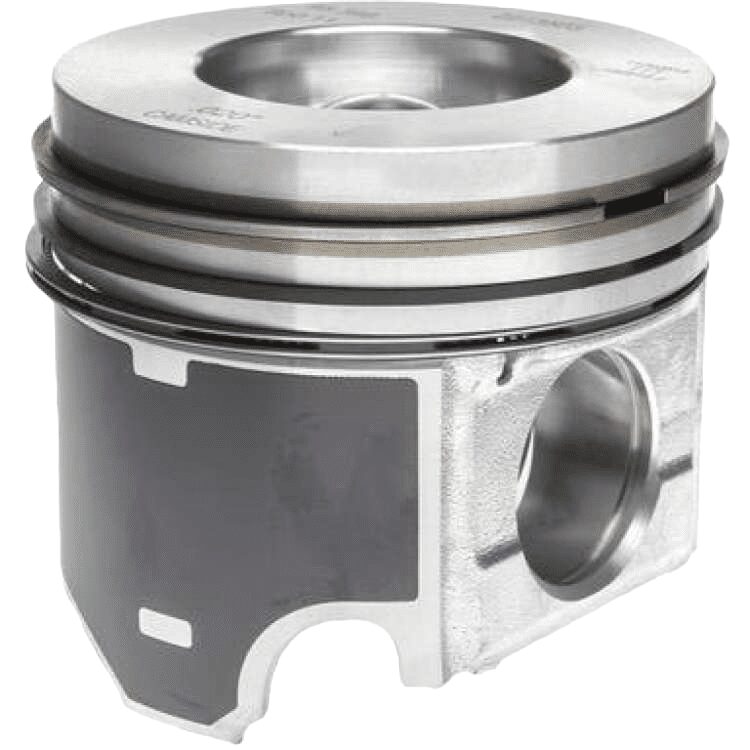

6.0L Powerstroke Diesel UEM Dualoy OEM Replacement Piston Set

6.0L Powerstroke Diesel UEM Dualoy OEM Replacement Piston Set

Features:

Steel top ring groove designed for long-lasting performance in street and strip trucks

Grafal moly-based friction coating on piston skirts for reduced wear

Plasma-coated steel top ring, ductile iron second ring, and 2-piece oil ring for enhanced durability

Kit Includes:

8 pistons with Teflon-coated skirts

8 pins

16 locks

Complete piston rings

Specifications:

Material: Aluminum

Compression Height: 2.059″

Compression Ring Groove: 2.30 mm

Second Ring Groove: 2.00 mm

Oil Ring Groove Width: 3.50 mm

Full Length: 85.82 mm

Pin Size: 1.339″ O.D. (34.0 mm)

Pin Type: Floating, center location

Piston Skirt Clearance: 0.004″

Combustion Chamber: Flat top with 31.89cc volume, 0.665″ deep dish

Compatibility:

Fits 2003-2010 Ford/Navistar Powerstroke Diesel V8 6.0L engines

Important Notice:

Take your engine block to a machine shop to measure your cylinders and determine the correct piston size before ordering. After shipment, any size changes will incur restocking and shipping fees. Pistons with ceramic coating and/or machined pistons cannot be exchanged.
